SnapToggle Anchor BA 3/16 - 24
S-SC-ATOGIV
About the product

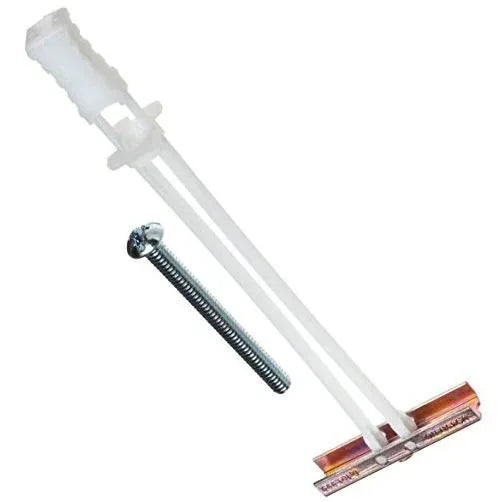

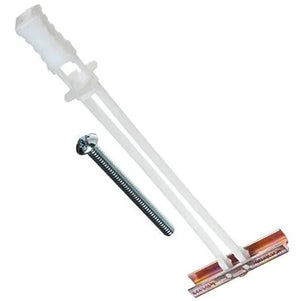

The SnapToggle anchor is an anchor system with a unique heavyweight design. Long plastic straps are attached to a small metal channel, which features a self-locking mechanism that allows you to remove the SnapToggle bolt without losing the anchor in the wall. Compared to wing toggles, SnapToggle anchors hold twice more weight and need a smaller hole in the wall, while also being reusable.
-
Heavy duty hollow wall anchors
-
Bolt measures 2 ½” long
-
Supports up to 1,080 lbs (concrete blocks) and up to 265 lbs (drywall)
-
Includes 3/16 -24 bolt
Instructions
-
Drill a ½” hole in the wall.
-
Hold the metal channel flat against the plastic straps and insert the anchor into the hole.
-
Hold the end of the straps and pull towards you until the metal channel rests behind the wall.
-
Slide the cap along the straps until the flange is flush with the wall.
-
Snap off the plastic straps so they’re level with the flange of the cap.
-
Place your item over the anchor. Then insert and tighten the screw to secure it in place.
-
Reuse the SnapToggle anchor as needed.
