Narrow Picture Rail Hook Zinc/Silver
S-HWR-1226X
About the Narrow Picture Rail Hook in Zinc/Silver

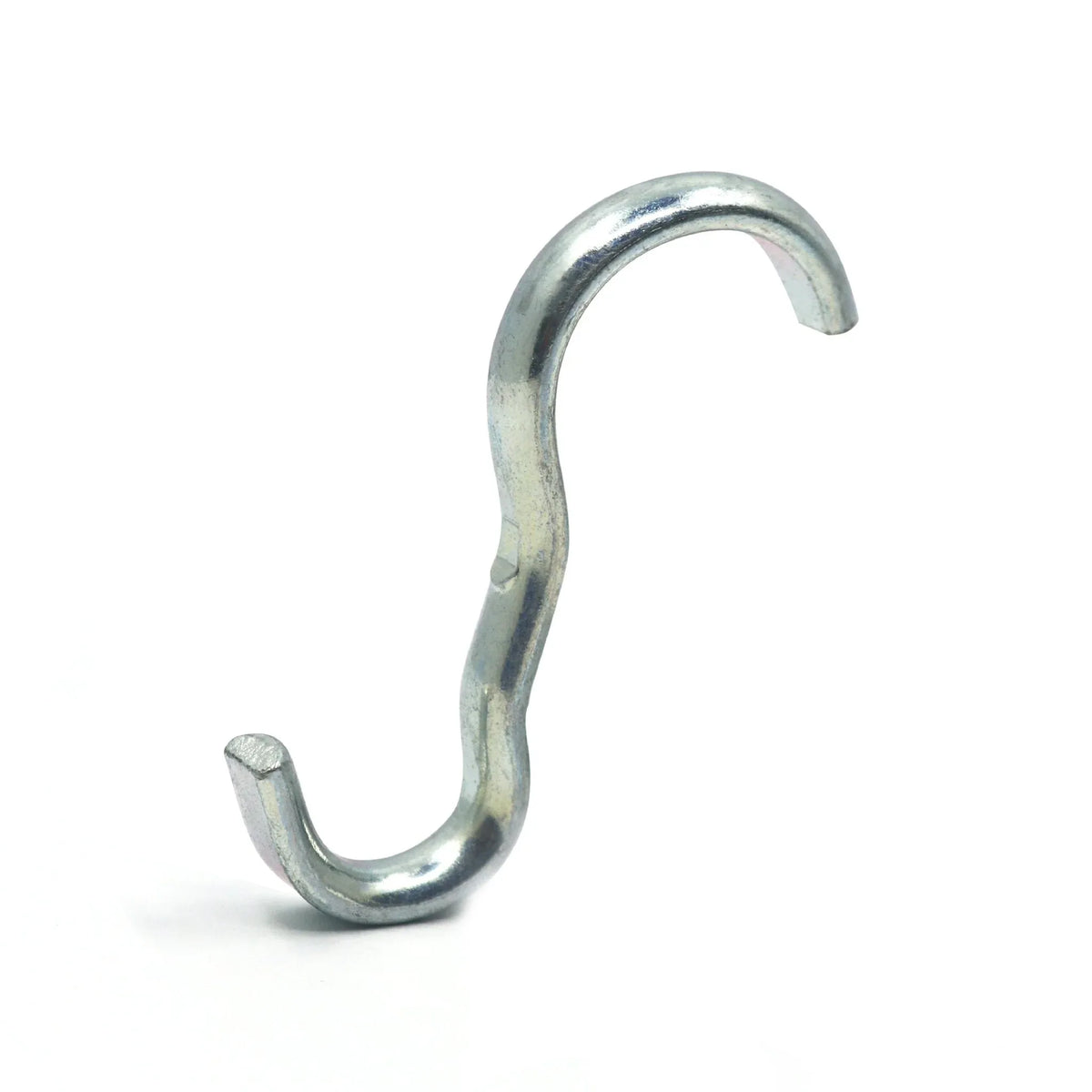

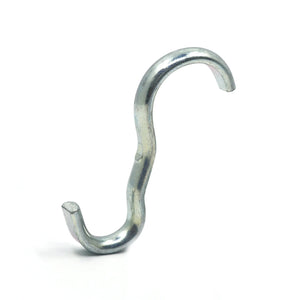

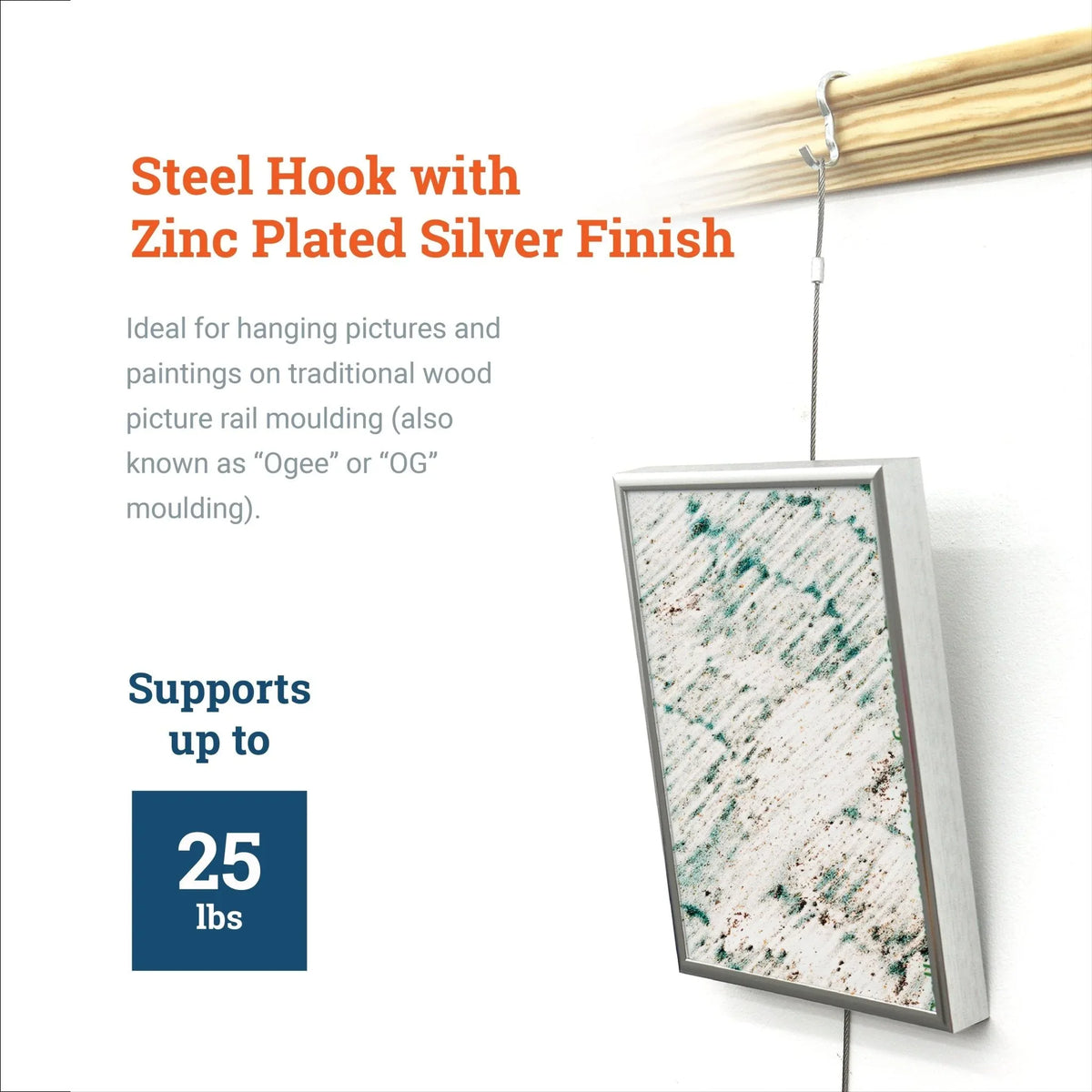

- A zinc-plated/ silver finish narrow rail hook for Ogee molding, a.k.a. picture rail systems. Supports up to 25 lbs.
- Picture rail hooks are used with Ogee molding or picture rail molding, and nylon or steel cable and picture hooks.

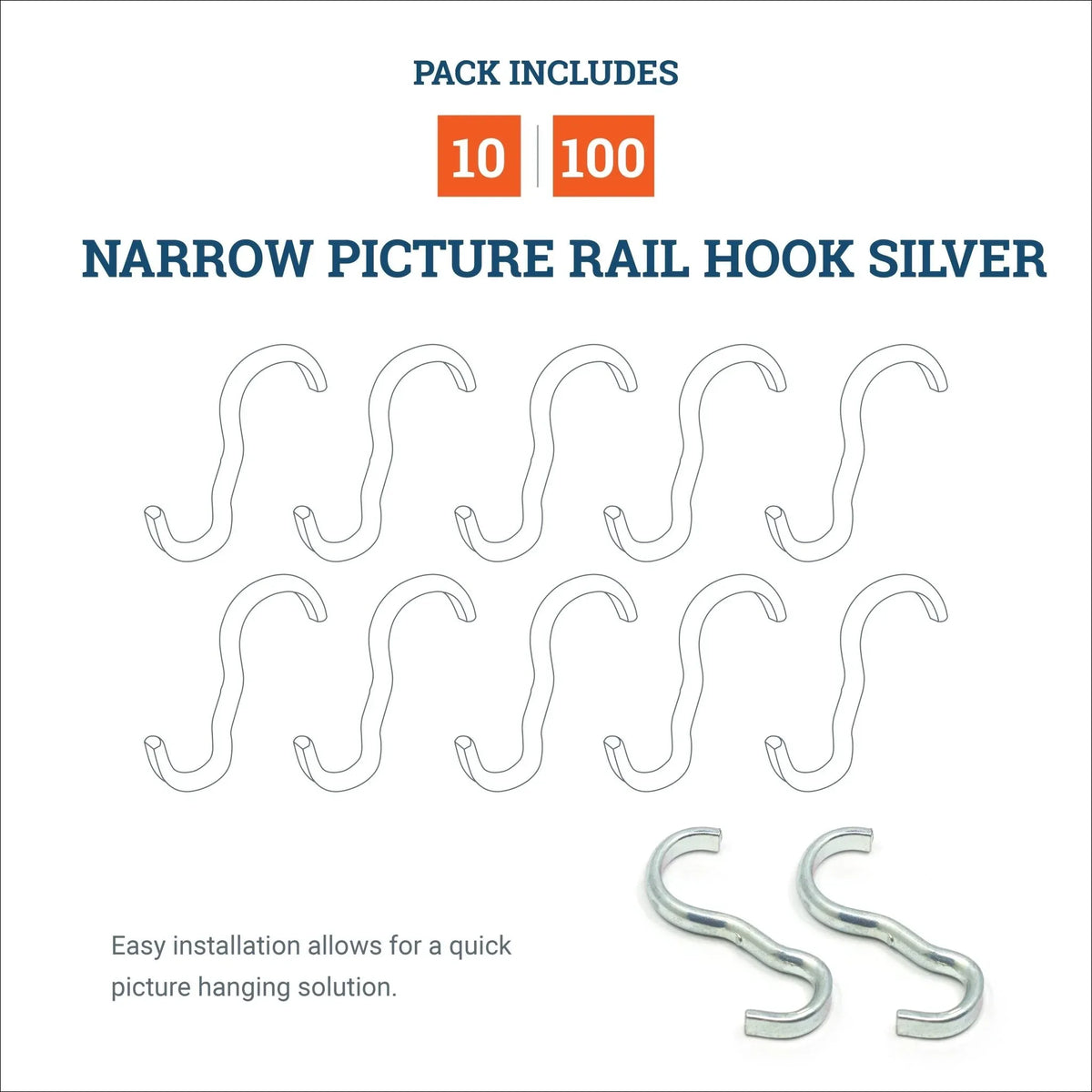

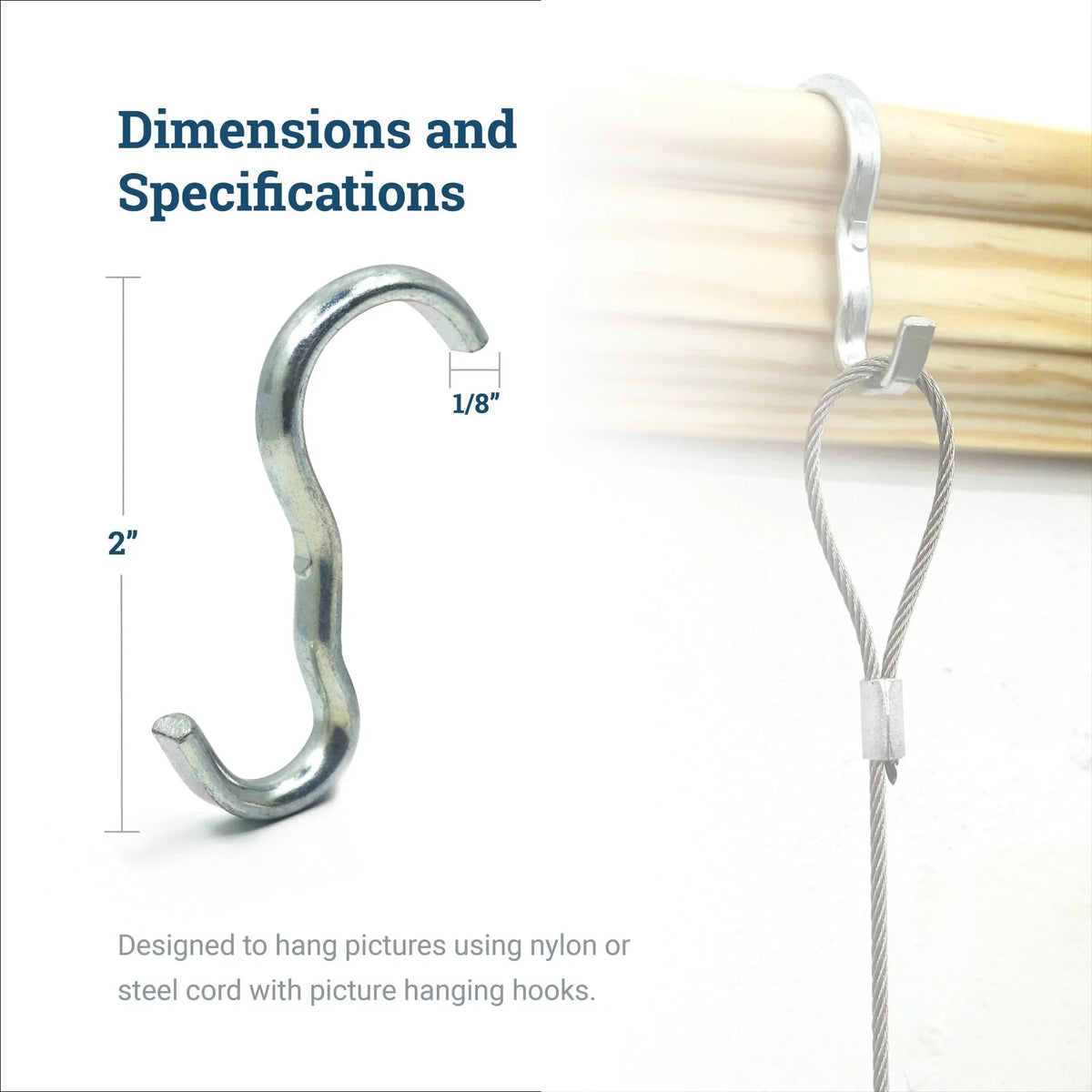

- Pack includes 10 Silver Narrow Rail Hooks. Each hook hanger measures 1 3/4" long, 3/16" wide, and 1/8 inch thick.

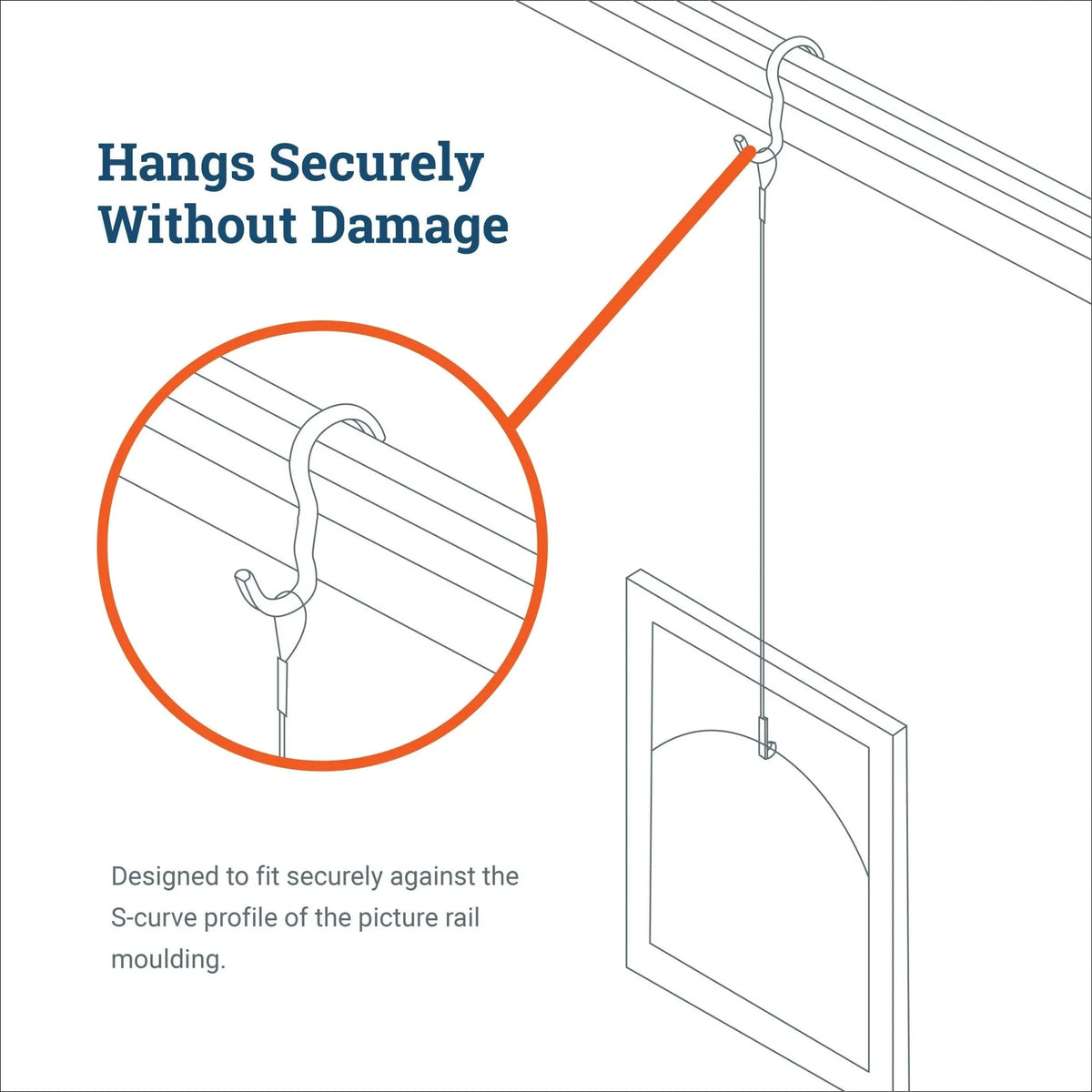

- The design is made to sit perfectly onto the curves of an Ogee molding and holds the whole system together to create a museum-like photo or art display.
- With a picture rail system, drilling holes in the wall is not necessary.
Instructions
- Two picture rail hooks per frame should be used.
- A second person to assist with hanging is helpful.
- Check the fit of your picture rail hooks. You can bend the hooks slightly if necessary to make them fit better.
- Strap Hangers or D-Ring Hangers should be installed at the upper corners of frames to be hung, aligned vertically just below the top edge. If the frame is hung from above, the hangers should be placed just far enough away from the top edge to be invisible.
- Using picture wire, extend the length of the picture wire from the bottom (smaller) bends of the two picture rail hooks, to the top of the frame on the wall. Wrap the wire tightly around itself to form a tight, compact coil about 1 to 1 1/2" long just below the bend of the picture rail hook; and then clip off any excess wire.

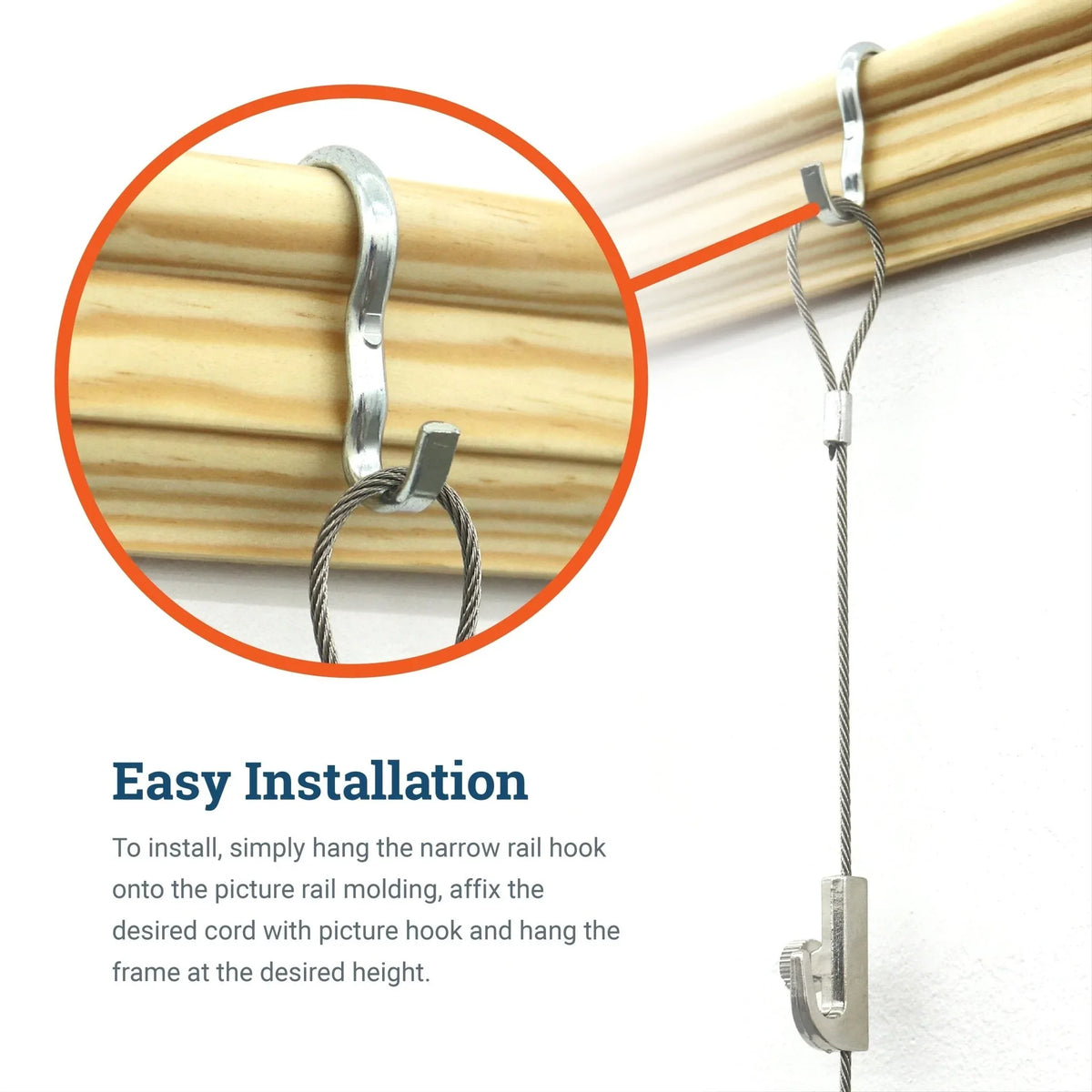

- Position the top (larger) bend of the picture rail hooks on the picture rail molding, approximately equal to the width of the frame to be hung. Allow the wire ends to dangle.
- Attach the wire from the picture rail hook to the picture hanger on the right side of the frame and raise it to about the height you want. Hold the left side of the frame with your left hand or, better yet, have someone assist you.
- Temporarily loop the picture wire around itself at the picture hanger to hold the right-hand side of the frame in position.
- Repeat Steps 7 and 8 on the left-hand side.
- Make any necessary adjustments to the position or spacing of the hooks on the picture rail molding. The two wires should be parallel.
- If necessary, unloop the wires at the picture hangers and adjust the wire height up or down until the picture is at the correct height. The picture should be level.
- Be sure to coil the picture wire tightly around each picture hanger. Clip off any excess wire.
Frequently Asked Questions
Q How do I install a gallery system and what tools or hardware do I need?
Installation depends on your system type. Wall track systems mount directly to the wall using screws and a power drill. Picture rail systems hook onto existing ogee molding with no drilling required. Both systems use hanging cords—steel or nylon—that attach to adjustable hooks for hanging frames. Complete kits include all hardware needed to get started. For setup details, check our Gallery Systems Product Guide.
Q Can I remove a gallery system without damaging my walls?
Picture rail hook kits that hook onto existing ogee molding can be removed with no wall damage at all. Wall-mounted track systems attach with screws, so removing them will leave small screw holes that can be easily patched.
Q How much weight can a gallery system safely hold?
Weight capacity depends on the track or rod, the hanging cord, and the wall mounting. Our gallery systems are designed to support a range of frame weights. Check each product listing for the specific weight rating of each component.
Q What wall types are gallery systems compatible with?
Wall track gallery systems can be mounted on drywall, plaster, and wood surfaces using the included mounting hardware. Picture rail hook systems require existing ogee picture rail molding, commonly found in older homes, galleries, and restaurants.
Q What kinds of frames or decor work best with gallery systems?
Gallery systems are ideal for spaces where you frequently add, move, or swap frames without putting new holes in the wall. They work with any frame type that can be hung from a cord and hook, making them popular in galleries, restaurants, offices, and homes with rotating art displays.
