Cleat Flare 10 inch - pair

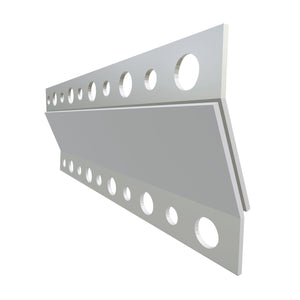

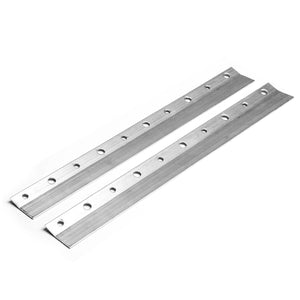

About the 10-inch Flare Cleat

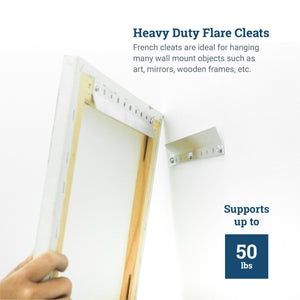

• 10 inch cleat supports 50 pounds

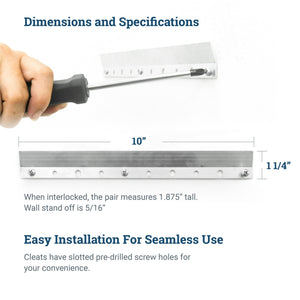

• Each cleat is 1.25 inch tall. When interlocked the pair is 1.875 inches tall
• Aluminum cleat is 3/64 inch thick and made of aircraft-grade aluminum
• Wall standoff is 5/16 inch
• Holes are one inch on center and alternate from large to small hole. Alternating holes allow you to easily level the cleat and/or use larger screws in studs. Small screw hole accommodates up to #8 screw and large screw hole accommodates up to #12 screw
• You can cut aluminum cleats to smaller lengths with any carbide tip saw. Note, the weight supported is 60 pounds per linear foot of cleat

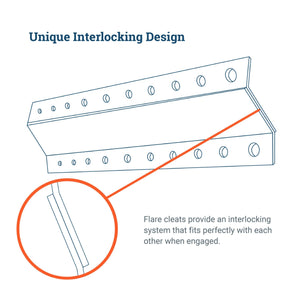

• The flare shape of the cleat makes it easier to engage the two cleats and allows some flexibility on non-plumb walls
